3MOTION

3Motion Advanced Buy now Configure from 8999 € Features Technical specifications Support and FAQ

Advanced

Motion

Our 3Motion simulator is the only way to experience sim racing as it should be. At its heart is a mul-ti-axis platform that uses a trio of hydraulic actuators with precise control to deliver all the dynamic feedback you get when driving a real racing car. The virtual world never felt so real!

SilentForce Akutatoren

Our SilentForce actuators simulate vehicle pitch under braking and acceleration, plus lateral roll and yaw as you control a car at speed. You’ll feel every bump in the road and every strike of a kerb; the instant feedback with zero latency will help you refine your driving style and deliver a new level of reality.

Heusinkveld ultimate 2-Pedal-Set & direct drive wheel base

Heusinkvelds Ultimate Pedals are one of the best pedals on the market and are used by many professional eSports and real racing drivers. The stable and highly variable pedals transmit inputs instantly via a 12-bit USB interface for an instantaneous driving experience.

All pedal inputs made with the Heusinkveld Ultimate pedals are measured by lad cells for even greater precision. The brake being part of that, has a maximum braking force of 136 kg but can deliver up to 200 kg of resistance due to its Load Cell function.

Direct-drive steering wheels transmit the force feedback directly with their electric motor without belt or gear ratios, thus ensuring an incomparably realistic simulation of reality. The MiGE industrial motors we use to generate high torques immediately and respond precisely to every steering input, enabling a realistic handling and driving behavior - all without any latency thanks to the BiSS-C encoder.

Racing Software compatibility

RaceRoom Racing Experience puts you straight into the driving seat of over 180 cars from across the rich history of motorsport. From classic touring cars through powerful GTs and on to prototypes and single seaters, RaceRoom allows you to drive the cars of your dreams on some of the most famous tracks from around the world. Even better, RaceRoom comes pre-installed on every TrackTime simulator package that includes a PC.

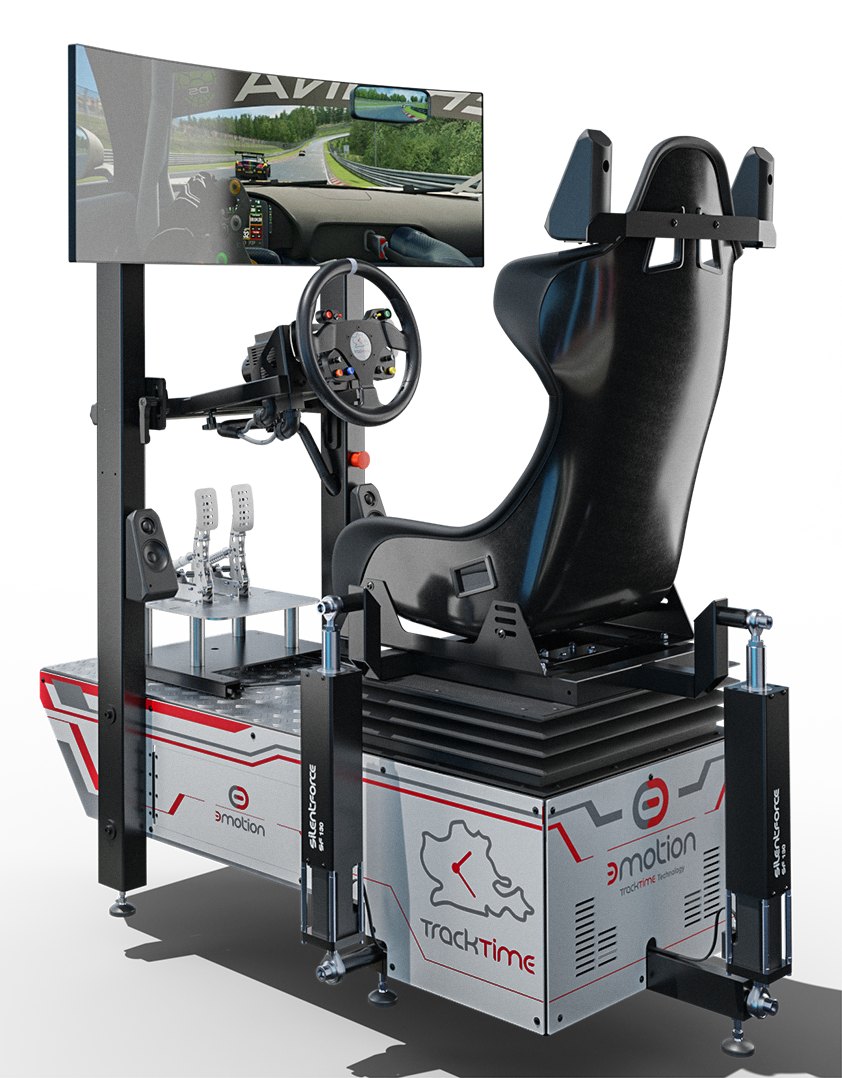

Tracktime 3motion Advanced

€16,099.00
Incl. 19% VAT, excl. Shipping Cost
In stock
Art.-Nr.
75010024
  • Fully built racing simulator – Plug and Play and Ready 2 Race
  • SilentForce actuators without latency for realistic simulation of road conditions
  • Sparco Grid Q Racing Seat
  • Stable tubular frame
  • Adjustable brackets for steering wheel and pedals
  • Samsung Odyssey (49“) Ultra Wide Curved Monitor
  • Lenovo gaming PC
  • 5.1 Soundsystem
  • SimuCUBE Direct Drive Wheel Base with Ascher Racing Button Box steering wheel incl. SimuCUBE Wireless Modul
  • Professional high end eSport Ultimate 2 Pedal Set from Heusinkveld
  • incl. SimTools: compatible with over 80 titles
More components

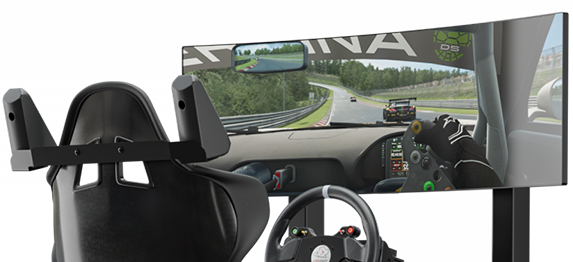

The Monitor

The Samsung monitor enriches your simulator with an ultra-wide and razor-sharp image with a diagonal of 49" and a resolution of 5.120 x 1.440 pixels. To not disturb your racing experience by annoying stuttering, display delays or screen tearing, this monitor has a rapid 120 Hz refresh rate.

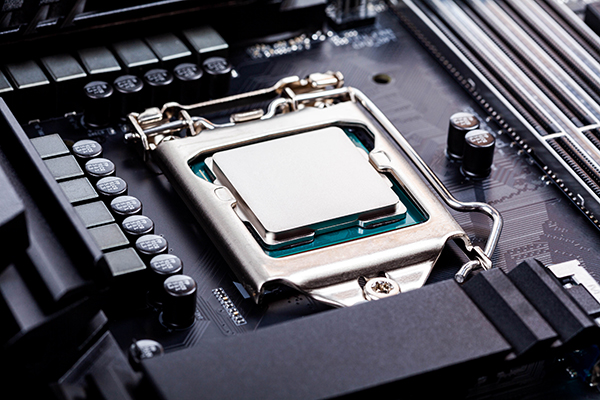

The Gaming PC

The PC, which is designed for 24/7 operation, includes the following components:

  • Intel i5-8500
  • Windows 10 Professional
  • 16 GB RAM
  • 512GB SSD PCIe
  • NVIDIA RTX2070
  • 1 onside service
The Seat

Lightweight GRP racing seat with padded and adjustable cushions that are attached with Velcro to create the optimal fit. The seat delivers the best possible combination of seating comfort and sportiness.

The Speakers

Integrated 4.1 system - spatial sound with rich bass. Bring the soundscape of the racetrack into your living room. The surround sound system consists of 4 loudspeakers and a subwoofer, which are placed around the driver for maximum spatial sound.

The Frame

Very stable, compact and torsion-resistant race frame. Longitudinally adjustable pedal plate to adapt to the height of the driver. Height and length adjustable steering wheel holder, individually adjustable monitor holder. All the technology is housed in the frame, and under the floor there is a compartment in which the PC can be accommodated.


Technical data
3Motion Advanced Power supply: 230 V / 50-60 Hz Fuse: 16 A Weight: 267 kg Size (LxBxH): ca. 1550 x 1100 x 1680mm Allowed environment temperatures: +5°C to +40 °C
Samsung Odyssey 49" Ultra Wide Curved Monitor Native resolution: 5.120 x 1.440 @120Hz Monitor image format: 32:9 Brightness: 600 cd/m² Contrast: 3000:1 Reaction time: 4ms Ports: 2x Display Port; 1x HDMI; 1x headphone jack 3,5mm; 4x USB 3.0
Lenovo Gaming PC designed for 24/7 operation Intel i5-8500 Windows 10 Professional 16 GB RAM 512GB SSD PCIe NVIDIA RTX2070 1 year onside service
Direct Drive Steering wheel Ascher Racing B16L-SC & GT Rim Simucube Wireless Wheel™ 8 x push buttons with positive tactile feeling 2 x encoders (inc. push button functionality) magnetic paddle shifters Peak Drehmoment 20Nm Nennspannung 220 V Nennstrom 4,5 A
Motionsystem 3 x Silentforce Aktuatoren SF130 Rated voltage: 48 V Rated current: 10 A Max. driverweight ca. 120 kg
Heusinkveld Ultimate Pedale Includes Throttle and Brake 200 kg Loadcell 136 kg actual brake force EMC tested electronics Inkl. 2-way damper
Speaker System 150 Watt Surround Sound 5.1 Inkl. Bass control Subwoofer with bass reflex tube
